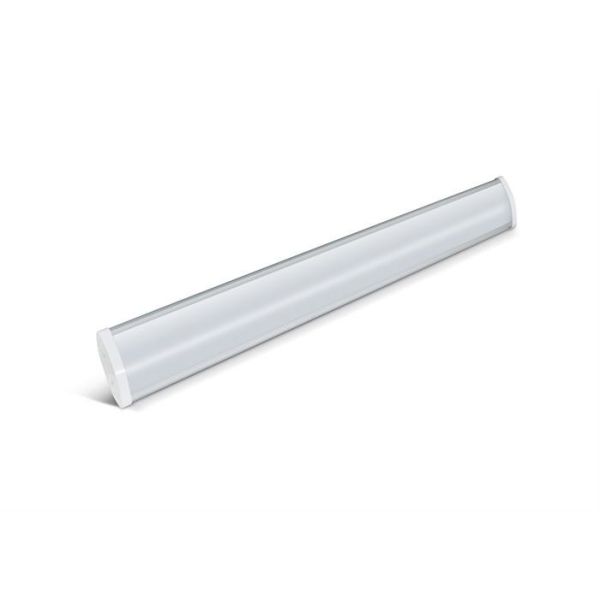

200W 1500mm Outdoor Linkable Tri - Proof LED Linear Light Fixture / Batten Light
Quick Details :
Part No. : 200W Tri - proof linear light
Light Source: LED
Item Type: Tube Lights
LED Light Source: Samsung SMD2835
Warranty(Years): 5
Input Voltage(V): AC85-265V
Lamp Power(W): 200
Lamp Luminous Flux(lm): 16500-17250LM
Lamp Luminous Efficiency(lm/w): 110-120m/w
CRI (Ra>): 80
Color Temperature(CCT): cool white, natural white, warm white
Working Temperature(℃): -30~+60°C
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: CE, CQC, FCC, PSE, RoHS
Place of Origin: Guangdong, China (Mainland)
Brand Name: Phenson
Length:300mm / 600mm / 1200mm /1500mm
Power: 25W / 30W / 45W / 50W /60W / 80W /100W /150W /200W
CRI:>80Ra
PC Cover: Forested
Beam angle:180 Degree
Material: PC housing + PC cover + AL board
Usage: Market ,office ,school ,factory and so on
Keyword: IP65 led tri-proof light
Feature :
1 . 300mm,600mm 900mm,1200mm,1500mm are available ,also can make length as your requirement
2. Non-dimmable, Dimmable, CCT Adjustable ,Radar Sensor ,Linkable,IP65 versions are optional .
All items are no flicking .
3. Using Milk cower IC and emerald capacitances as major components .
4. Using PC Cover in UL V.2 level and End Cap in UL V.2 level ,both are fireproof .
5. Private mould which there is no the same in the market .
6. Various CCT Options :3000K,4000K,5000K,6000K
7. Beam Angle:> 150 degree, 3 years Warranty .
8. SAA, CE, RoHs approval.
9. Installations :suspended mounting(with lifting rope), surface mounting(with brackets)
Parameter :
| Item No. | 200W | 150W | 80W | 60W |
| Dimension | 1500*130*83 mm | 1200*130*83 mm | 900*130*83 mm | 1500*130*83 mm |
| Power | 200W | 100W/150W | 80W | 60W |
| Product Color | Silver | Silver | Silver | Silver |
| Luminous flux | 22000-22500LM | 11000-15500LM | 8800-9200LM | 6600-6900LM |
| 16500-17250LM |
| Lamp efficiency | 110-120m/w | 110-120m/w | 110-120m/w | 110-120m/w |
| Light source | Samsung 2835 | Samsung 2835 | Samsung 2835 | Samsung 2835 |
| Light degradation rate | 25000h ≤ 30% | 25000h ≤ 30% | 25000h ≤ 30% | 25000h ≤ 30% |
| Color rendering index | Ra>80 | Ra>80 | Ra>80 | Ra>80 |
| Power factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Driver Brand | Meanwell HLG Series | Meanwell HLG Series | Meanwell HLG Series | Meanwell HLG Series |
| Beam angle | 120° | 120° | 120° | 120° |
| Rated life | ≥50000h | ≥50000h | ≥50000h | ≥50000h |
| Color temperature | 3000K-3500K | 3000K-3500K | 3000K-3500K | 3000K-3500K |
| 4000K-4500K | 4000K-4500K | 4000K-4500K | 4000K-4500K |
| 6000K-6500K | 6000K-6500K | 6000K-6500K | 6000K-6500K |
| Working temperature | -30~+60°C | -30~+60°C | -30~+60°C | -30~+60°C |
Design :
Application :
Product Tags:
|
|

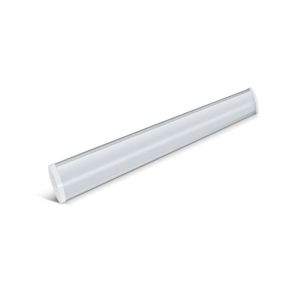

200W Linkable Outdoor Linear LED Lighting Images
|
